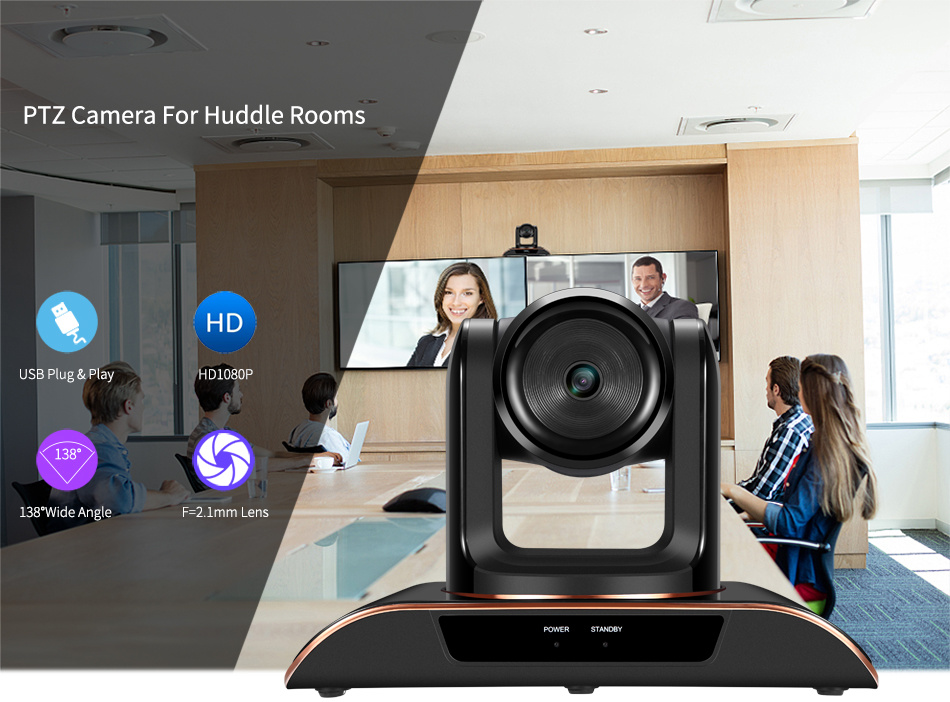

Features for VHD1080 PRO
1.
Fixed focus zoom camera2. Plug and play USB connectivity; easy to set up
3. Sleek and intelligent design
4. Accurate, smooth and silent PTZ movement;

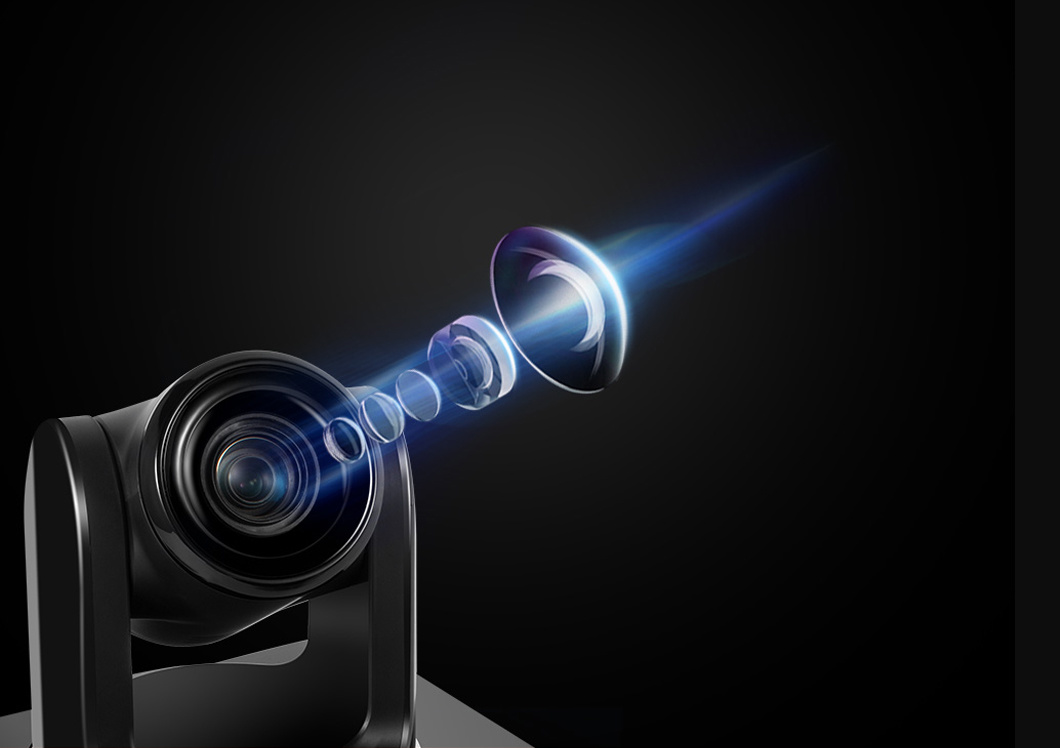

5. Superior quality with full glass lens material; 6. Wide field of
view with no video distortion
7. 2D and 3D NR for best video quality in different lighting
conditions
8. Compatible with all popular applications and cloud system
Image Sensor | 1/2.7 inch HD COLOR CMOS |
Effective pixel | 8.0 mega pixel |
Horizontal Resolution | 1080P30/25, 720P30/25, VGA(640x480), CIF(352x288) |
Signal standard | NTSC/PAL |
Zoom | Fixed focus |
Focal length | F=50.0mm(wide)-800.0(tele) |
Horizontal Angle | Near-end 138°~Far-end 100° |
Gain control/Focus | Auto/manual |
SNR ratio | ≥48dB |
Wide dynamic | On/Off |
Shutter speed | 8 to 1/10000s (auto) |
Preset position | IR remote control supports 9 presets
PELCO Protocol supports 256 presets |
Pan/Tilt movement range | Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S) |
Control terminal | RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
Video output | USB |
Video Compression Format | YUV, MJPEG, H.264 |
Noise Reduction | 2D/3D |
Work temperature | -10°C-~50°C |
Storage temperature | -20°C~60°C |
Baud rate | 2400/4800/9600bps |
Decoder | Built-in |
Address set | 1~256 |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
1.Delivery:
For sample orders, we have products in stock; same day shipping
when we get the order;
For purchase order, we will ship within 3-7 working days;
2.Packaging:
Foam packaging inside; standard carton packaging outside.
1.Who we are?
Due to our extensive partner network, Tongveo can play a decisive
role in international or global video conferencing projects. We
focused on developing and implicating the technology of video
conferencing products,SD,HD PTZ video conference camera and
omnidirectional conference microphone speakers.We are proffessional
and we have good reputation in product development, production,
sales and after service. We can design produce and sale directly in
order to ensure the most competitive price and excellent quality
under control.All of our products are compliant with CE,FCC and
Rosh standards. We have established a sound sales & service
network.Offices has been set up in Shenzhen, Hongkong, Beijing,
Guangzhou, Xi'an,etc.We also successfully sold our products to many
foreign countries. We are sincerely to make any meeting better and
easier! Welcome your OEM/ODM orders.
2. What we do?
We designing, tooling, produce and sale directly in order to ensure
the most possible competitive price and excellent quality under
Control. Our Product: Video conference camera,Video conference
omnidirectional microphone, video Conference software product Video
conference system, audio conference system, Network Conference
system, Education system, Tele-medicine system, Courtrooms, Public
safety system, Financial facility, Airports, Prisons, Highways,
Port, Forest Fire Prevention, Schools and Customs systems.
Our advantages
1.Strictly QC process1) Four times strict 100% inspection Raw Material Inpection +
Semi-finished product inspection + Finished product inspection +
Customer commissioned inspection (AQL 2.5 Standard)
2) 72 hours of pre-delivery aging test. We owns our independent
aging test lab and all products undergo 72-hour aging test before
shipment.
2. Warranty We provide 24 months wanrranty guarantee, replacement
within 3 months, and 24 months free maintainance. Enjoy lifetime
technical support service. (firmware upgrade service etc )
3. Qualified Certificates. Our products are produced in strict
compliance with international standards ( CE, FCC, RoHS, VCCI, ISO
9001 ).
4. Japanese Production Guide. Completely follow the strict Japanese
production standards to guide production.
