Brand Name : | Tongveo |
Model Number : | TEVO-NV400A |
Certification : | ISO9001,CE,FCC,ROHS |
Payment Terms : | L/C, T/T, Western Union, Paypal, Western Union, D/A, D/P, MoneyGram |
Supply Ability : | 3000 pieces per month |
Delivery Time : | 1-10 working days |
Introduction

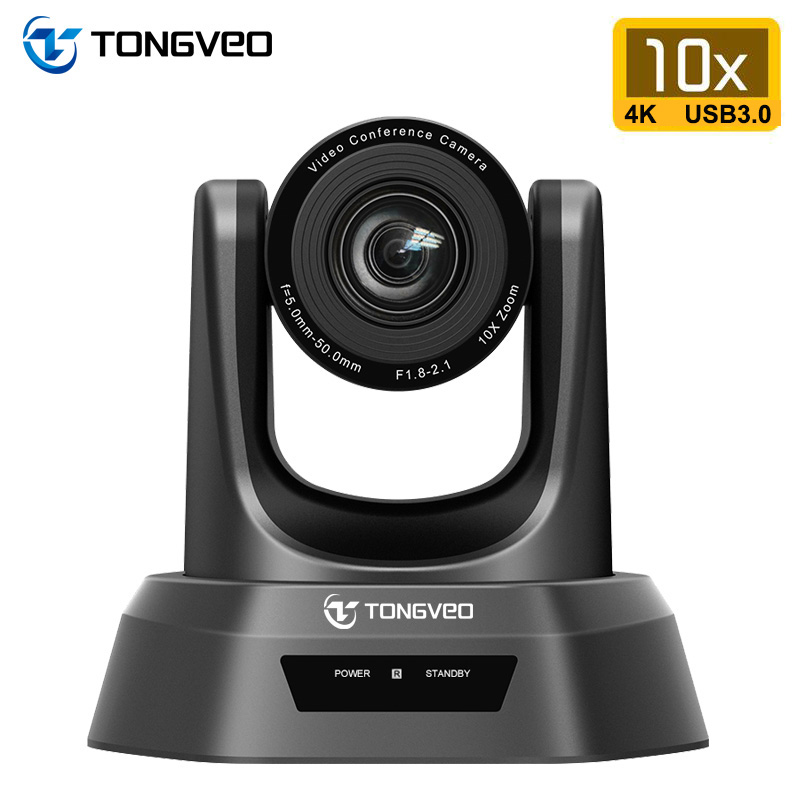

The NV400A Pan/Tilt/Zoom (PTZ) camera has USB video output.
It is equipped with a 1 /3 inch HD Color CMOS with 2.1 mega pixel
(16:9) and 4K output resolution & a high dynamic image of 30 fps.
The superior 10X optical zoom lens, excellent white balance, and
exposure mode delivers a clear image even in low light or the
extreme contrast of brightness and darkness in a conference room.
The camera covers a wide shooting angle and achieves high-speed,
quiet, and precise positioning with smooth PTZ operations.
There are up to 256 preset setting movements and stable remote
controlling for displaying effective and efficient presentations.
The TEVO-NV400A is applicable for video conferencing in a medium
conference room.
Parameter:
Product No. | NV400A |
Image Sensor | 1/1.2.8" progressive scan, Sony IMX415 CMOS |
Effective pixel | 8 mega pixel (16:9 ) 4K |
Horizontal Resolution | 1080P30/25, 720P30/25 |
Signal standard | NTSC/PAL |
Zoom | 10x optical zoom lens 10xdigial zoom |
Minimum luminance | Colour: 0.01 lux (F1.5,AGC ON) 0.001 lux with IR |
Focal length | f=5.0mm~50.0mm |
Horizontal Angle | Near-end 55.5°~Far-end 3.0° |
Gain control | Auto |
Focus | Auto |
White balance | Auto |
SNR ratio | ≥50dB |
Shutter speed | 1/2 - 1/20,000s |
Preset position | IR remote control supports 9 presets, PELCO Protocol supports 256 presets |
Pan/Tilt movement range | Pan: 175°(max speed 80°/S), Tilt: 35°~55°(max speed 60°/S) |
Control terminal | USB3.0, RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
Video output | USB3.0 |
Video Compression Format | YUV, MJPG, H.264 H265 |
Noise Reduction | 2D/3D |
Work temperature | -10°C-~50°C |
Storage temperature | -20°C~60°C |
Baud rate | 38400/9600bps |
Decoder | Built-in |
Address set | 1~256 |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
Power supply | DC12V/ 2A |
![]() |
